■ Products > KSU Band saw
Portable band saw KSU-320FV
Safe No pollution
Safe and No pollution
· No sparks, noise and dusts. Rapid speed improves work efficiency.
Specifications
Model KSU-320FV
Cutting capacity Round Ø320mm
Square □300mm
Angle cut Round Ø195mm
Square □200mm
Motor Single-phase, Condenser motorㆍOver-load Protector Voltage made to order 300W, 50/60Hz
Pully rotation 0.47m/s (28.4m/min) 50Hz : 0.57m/s (34.1m/min) 60Hz
Dimension 1,540(L) × 610(W) × 650(H)mm
Blade Size 2,885(L) × 20(W) × 0.9T
Weight 115Kg
Features
All-in-one handle equipped with frame is convenient for raising the frame. (Frame handle) Reinforcing bar is installed to prevent solid frame not to twisted. (Frame reinforcing bar)
Tension adjustment can be made easily and freely according to working environment (Tension adjustment). Precise structure of stable saw blade rotation system is designed.
The saw blade guide head equipped enables precise right angle cutting. High efficiency reduction gear motor system.
Fine adjustment of cutting speed is possible with one-touch on / off switch and hydraulic control valve. (Power switch / Hydraulic valve) When cutting circular pipe, it’s possible to fix with chain clamp securely. (chain clamp)

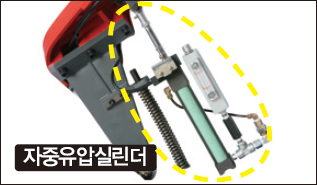

Various angle cutting is possible ranging from 0 degree to 45 degree angle. (45 degrees cutting) Equipped with precise self-weight hydraulic cylinder system, it has fine cutting load speed adjustment and cutting auto stop function.(self-weight hydraulic cylinder).
Solid aluminum wheels and bearing typed urethane wheels are installed. Movement and fixing are convenient by quick vice.(Quick Vice)
