■ Products > Band saw

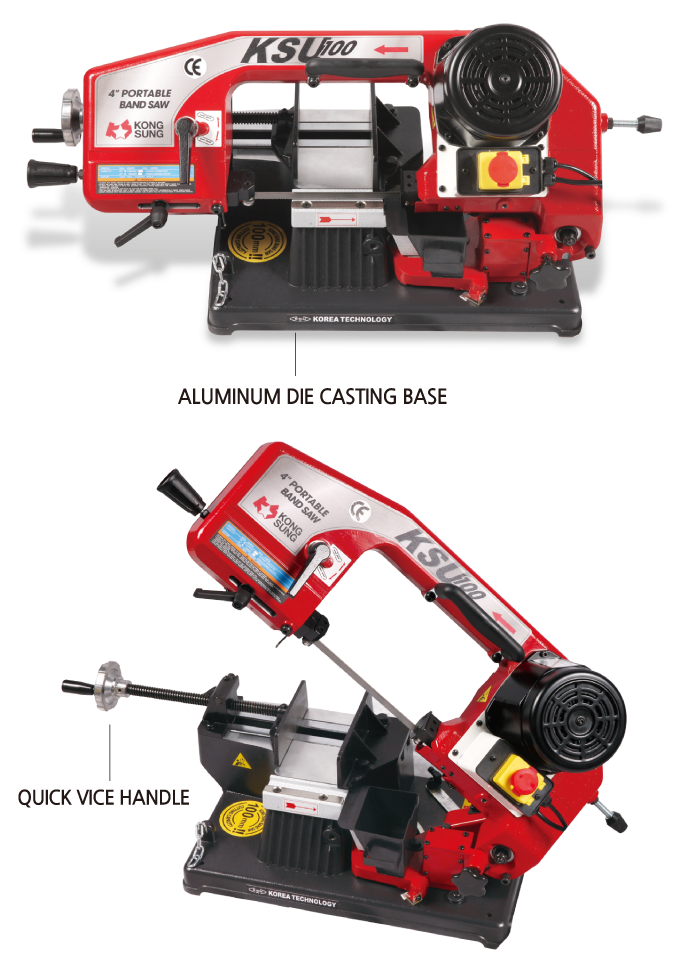

Portable band saw KSU-100FV
Safe No pollution
Safe and No pollution
· No sparks, noise and dusts. Rapid speed improves work efficiency.
Usage

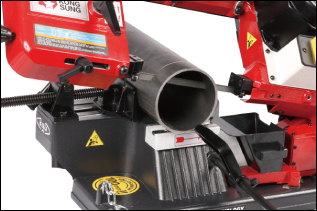

  • Cutting for a steel pipe, water-supply pipe, lining steel pipe, cable pipe, PVC pipe, resin pipe, cast iron pipe,
    stainless steel pipe, steel material, rectangular pipe, round bar, aluminum, etc.
Specifications
Model KSU-100FV
Cutting Capacity (H×W) (H×W) 90˚ Ø100 mm (4") / □100×150 mm (4"×6")
45˚ Ø85 mm (3.35") / □85×100 mm (3.35"×4")
Motor 1/2 HP 60 Hz 1,720 RPM / 1/2 HP 50 Hz 1,430 RPM 4 POLE
Blad Size 13×0.65×1,470mm
Blad Speed 60 Hz 54 mpm 50 Hz 45 mpm
Dimension 670 (L)×300 (W)×420 (H)
Packing Size 724mm×381mm×458 mm (28.5"×15"×18")
N.W / G.W 23kgs / 27kgs
Features

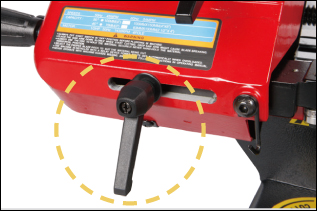

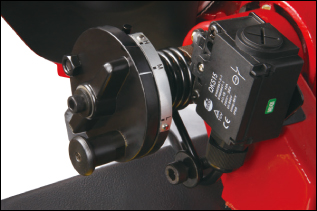

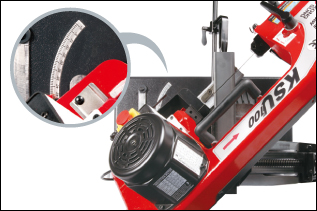

Possible to cut various angles up to 45° Allowing it to adjust three-speed stages of the load velocity depending on the cutting materials.

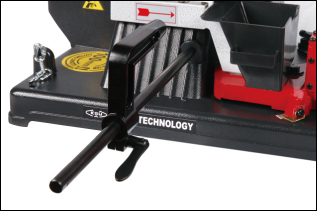

Allowing it to cut the same length of material in a row. Right angle of High-speed cutting allows it to improve cutting precision.

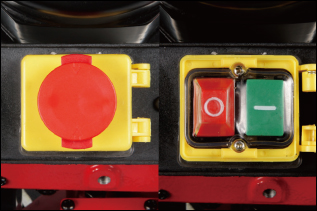

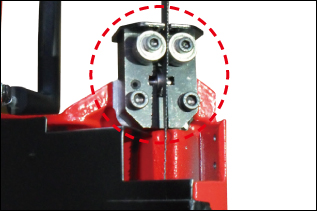

Allowing it to adjust the blade guide depending on the sizes of the materials. Equipped emergency stop button and electronic magnetic switch keep a user and machine safe.

Possible to set right angles accurately.
