■ Products > Band saw

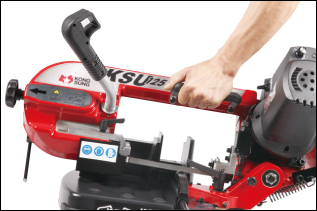

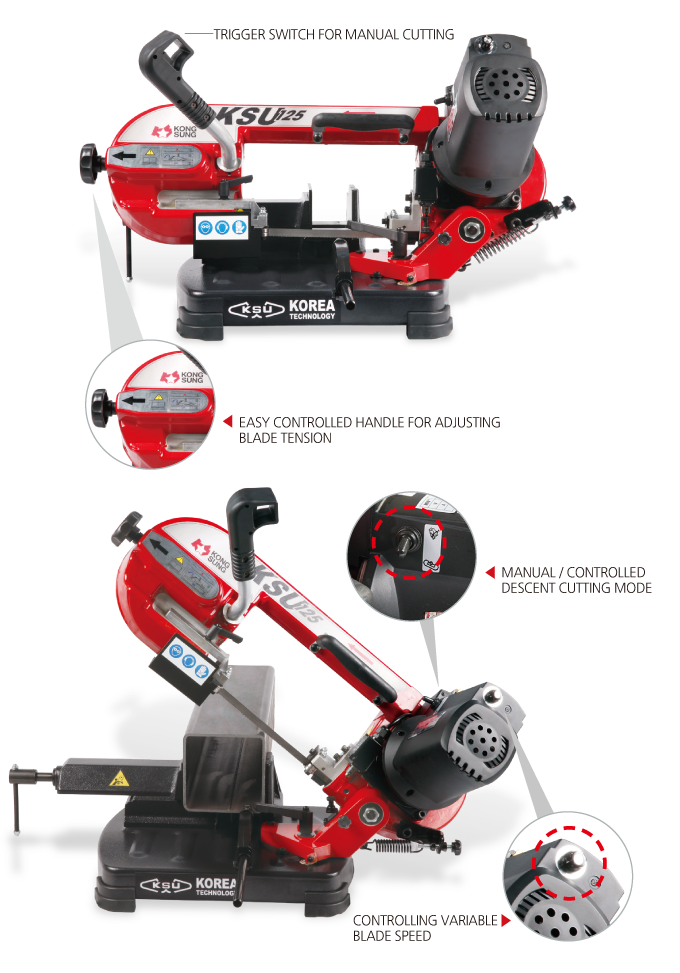

Super-Light Portable band saw KSU-125FV
Usage
  • Cutting for a steel pipe, water-supply pipe, lining steel pipe, cable pipe, PVC pipe, resin pipe, cast iron pipe,
    stainless steel pipe, steel material, rectangular pipe, round bar, aluminum, etc.
Specifications
Model KSU-125FV
Cutting Capacity (H×W) 90˚ Ø125 mm / □120×120 mm
45˚ Ø70 mm / □120×70 mm
60˚ Ø35 mm / □ 65×35 mm
Motor 300 W
Blad Size 13×0.65×1,440 mm
Blad Speed 23~75 mpm
Dimension 680 (L)×370 (W)×400 (H)
Packing Size 730 mm×383 mm×475 mm
N.W / G.W 22kg / 25kg
Features

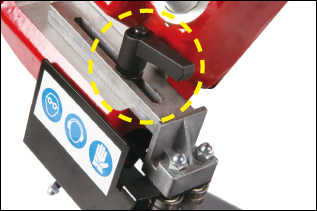

Light Base Frame. Allowing it to adjust the blade guide depending on the sizes of the materials.

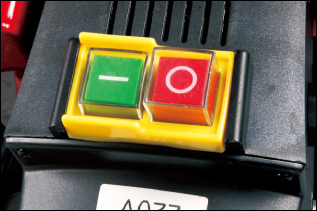

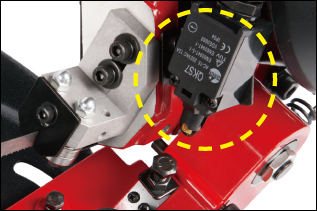

Automatic ON/OFF fuction. Equipped electronic magnetic switch allows a user and machine keep safe.

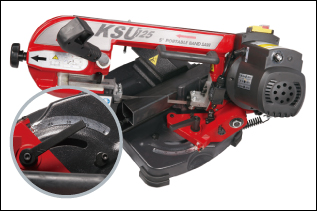

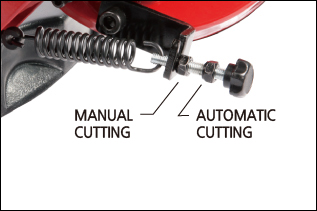

Possible to cut various angles up to 60° Select either of the two options ( manual or automatic cutting ) before using.

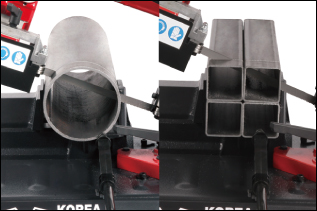

Possible to cut max. 125mm and a bundle of the material at one go.
