| ■ Products > Band saw |
| Flat vice band saw KSU-230FV |
|
|
 |
|
|
|
 |
|
|
KSI Band saw is built on base, on which either a flat vice or a chain vice can be mounted depending on its usage.
Usage : Cutting for a steel pipe, water-supply pipe, lining steel pipe, cable pipe, PVC pipe, resin pipe, cast iron pipe, stainless steel pipe, steel material, rectanggular pipe, round bar, aluminum, etc.
|
|
|
| ■ Specifications |
|
| Model |
KSU-230FV |
| Vice type |
Flat Vice |
| Cutting Capacity |
90° |
Ø230mm / □175mm |
| 45° |
Ø115mm / □125mm |
| Motor |
Single-phase, Induction motor, 300W, 60Hz |
| Blade Size |
16 × 0.65 × 1,850mm |
| Blade Speed |
48mpm |
| Dimension |
1,050(L) × 400(W) × 500(H)mm |
| Packing Size |
1,060(L) × 415(W) × 540(H)mm |
| N.W/G.W |
64.5kg / 70kg |
|
|
| ■ Features |
|
 |
|
 |
| Precision structure design of stable saw blade rotation system |
|
Integrated frame handle |
 |
|
 |
| 3-step cutting load adjustment |
|
One-touch tension adjustment |
 |
|
 |

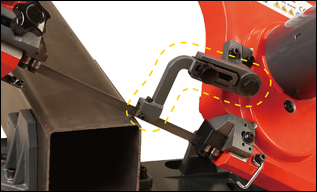

| Saw blade guide head for stable cutting |
|
Guide arm for precise right angle cutting |
 |
|
 |
| High efficiency gear motor system |
|
Easy to move with wheels |
|
|
|
