| Pipe threading machine KSU N80A[3"]-B |
|
|
|
 |
| Heavy duty Pipe threading machine Fulfilled the accuracy. Safety and economical, Easy operation |
 |
|
|
 |
|
The pipe threading machine with the timing belt movement
system is possible to operate very quiet and non-sllip.
Equipped with the powerfull induction motor.
High working speed and easy to size control.
|
Self-lubricasting die head.
|
|
|
| ■ Specifications |
|
| Capacity |
½" - 3" (Threading. Cutting. Reaming) |
| Volatage |
AC 220 V (60Hz) |
| Motor |
Single-phase 1100 W or 1500 W condenser motor |
| Rotation Speed |
27 r.p.m |
| Net Weight |
106 kg (233.2 lbs) |
| Dimension |
910 (L) × 450 (W) × 670 (H)mm |
|
| ☞ Votage made to order |
|
| ■ Features |
|
 |
|
 |

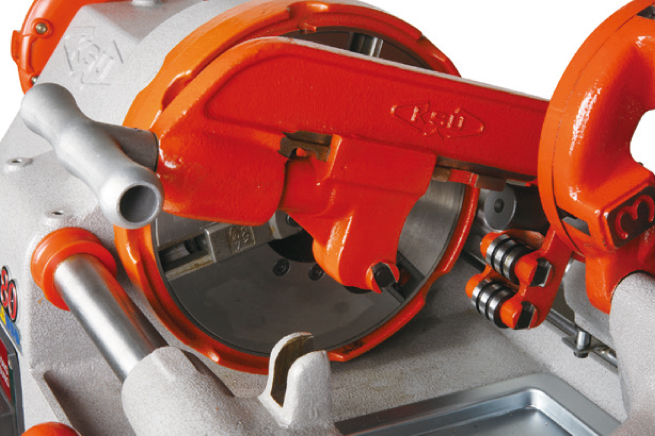

| This cutter&Slide made of FCD45 shows
excellent durability and shock-resistance. |
|
Apply low noise high-power induction motor |
 |
|
 |
| This spindle gear made of GCD60 shows
excellent durability and shock-resistance. |
|
Apply special alloy steel. |
|
|
