High-tech machines with high degree of precision and accuracy. Powerful brush motor. (PERMANENT CASTING)
Light and strong due to body and base are united as a one. High working speed and rapid changing of die head and Dies.
Self-lubricasting die head.
Uses auto-stop carbon brushes to prevent damage to the motor.
▶ Machine carrier (Optional)
■ Specifications
Capacity
½" - 3" (Threading. Cutting. Reaming)
Volatage
AC 220 V (50/60Hz)
Motor
Single-phase series motor (750W)
Rotation Speed
25 r.p.m
Net Weight
69 kg (151.8lbs)
Dimension
745 (L) × 450 (W) × 450 (H)mm
☞ Votage made to order
■ Features

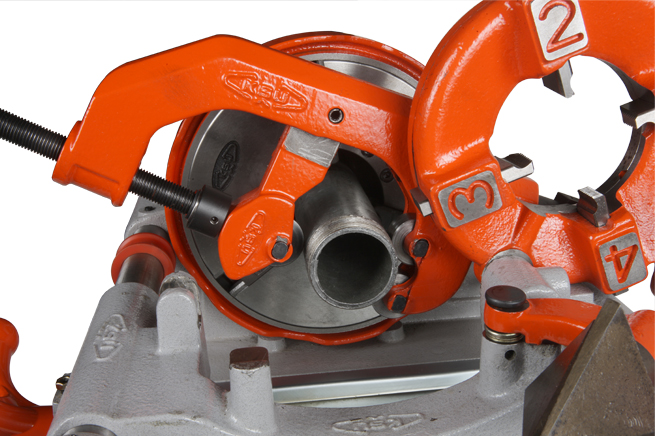

The improved cutter and reamer is greater cutting and durability.
Jaw Tip are made of special steel which is
hardened and grind.
High-power motor with powerful torque of up to 3 inches cut once.
The function of carrage handle designed for
gear-type should prevent the breaking while maximizing it's performance.
Cutter for cutting a pipe structure that can be easily.
