High-tech machines with high degree of precision and accuracy. Powerful brush motor (PERMANENT CASTING)
Light and strong due to body and base are united as a one. High working speed and rapid changing of die head and Dies.

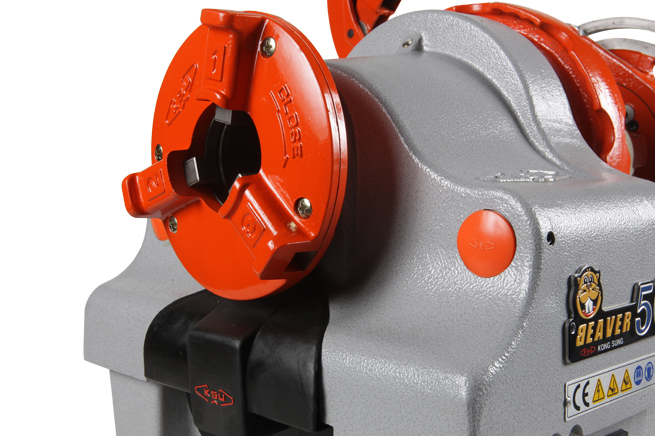

Self-lubricasting die head.
Uses auto-stop carbon brushes to prevent damage to the motor.

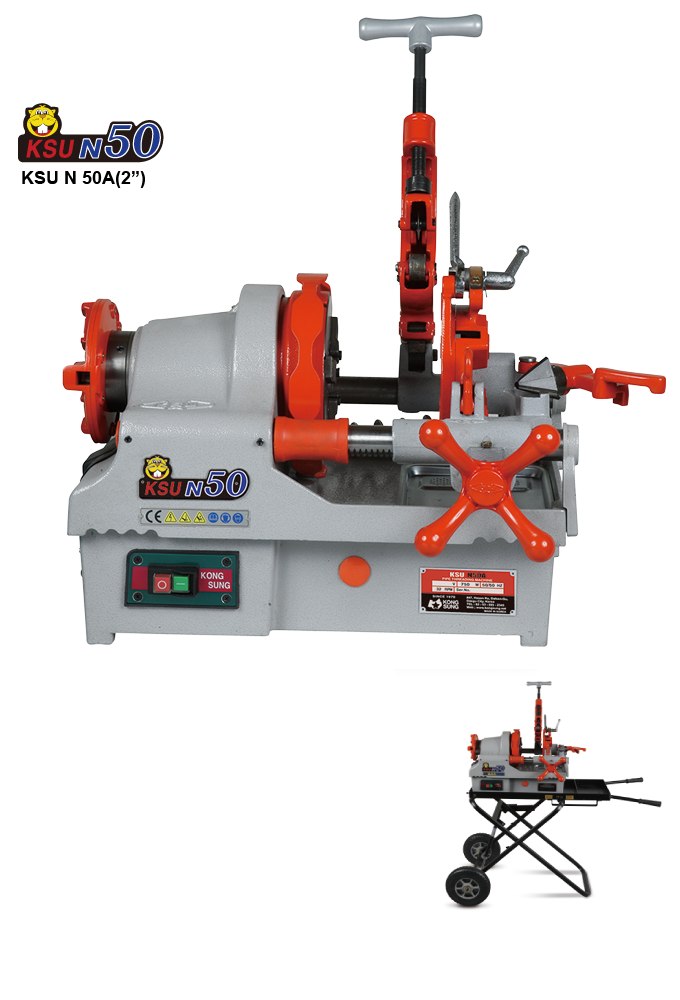

▶ Machine carrier (Optional)
■ Specifications
Capacity
½" - 2" (Threading. Cutting. Reaming)
Volatage
AC 220 V (50/60Hz)
Motor
Single-phase series motor (750W)
Rotation Speed
32 r.p.m
Net Weight
58.5 kg (128.7lbs)
Dimension
570 (L) × 470 (W) × 420 (H)mm
☞ Votage made to order
■ Features

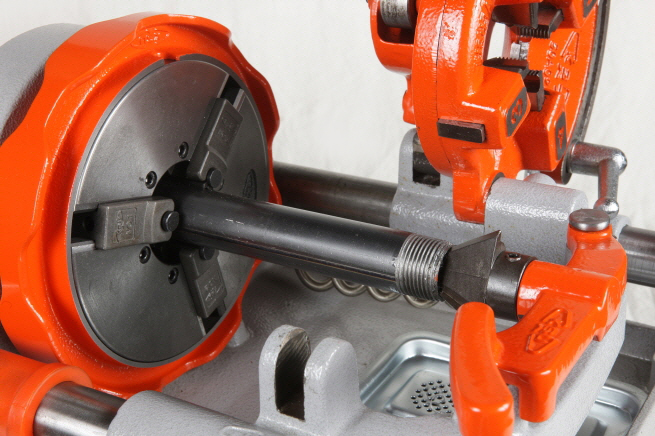

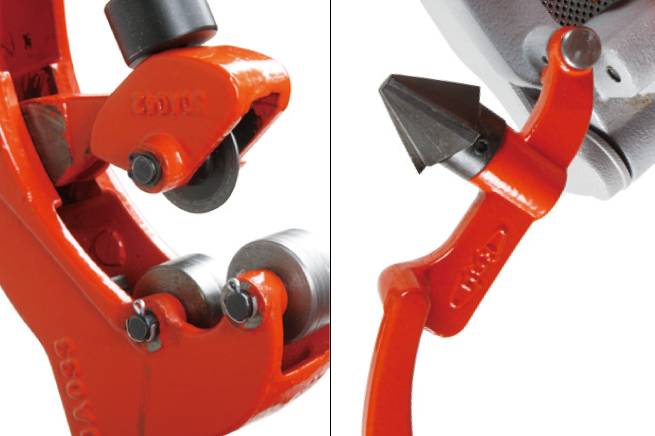

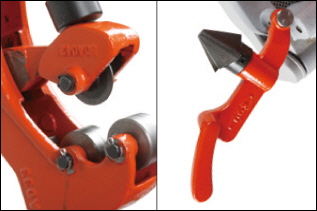

The improved cutter and reamer is greater cutting and durability.
Clean working area and easy chamfering processing

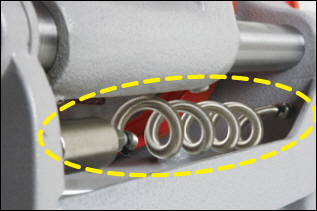

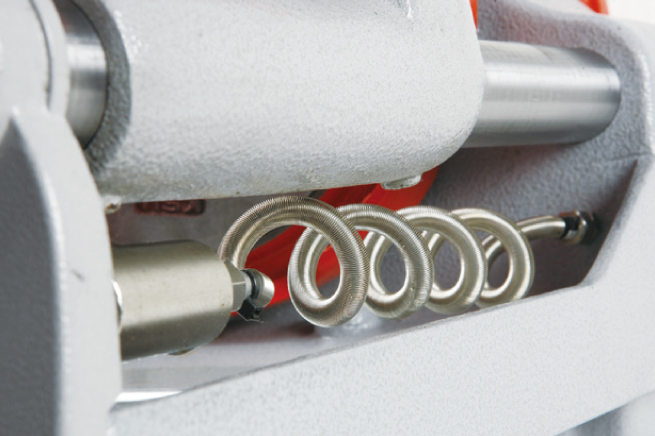

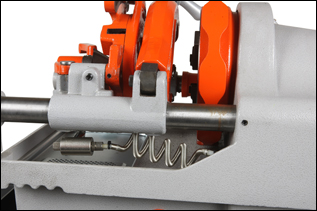

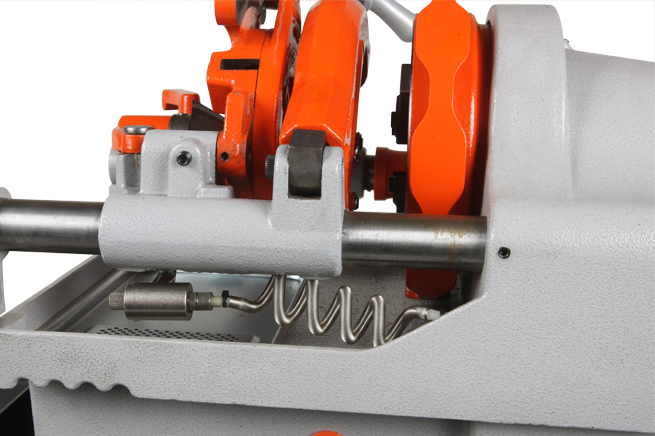

Flow control valve and coolant lines

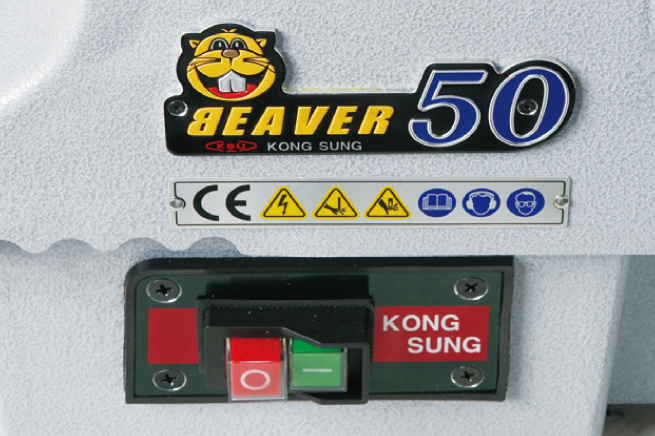

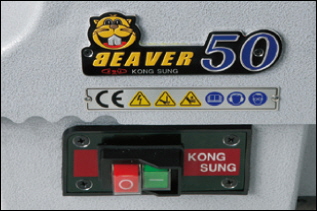

Perfect switch for prevention of overload and
water-proof structure in long operation.
the control valve can adjust the the flow rate depending on the pipe sizes (new product)
The durable body set
